Medical Gas Pipeline Equipment
Copper Tube
Degreased copper tube is manufactured in the UK under BS EN 13485 Medical Devices: Quality Management Systems. All tube is manufactured under strict quality control procedures to ISO 9001:2008. Our copper tube is CE marked as a class IIa Medical Device 93/42/EEC .
It is designed for use in Medical gas pipeline system installations and incorporates the specialist requirement of the MGPS industry to include cleanliness, packaging and usability required to attain the levels of quality as stated particularly in EN 7396-1 & HTM 02-01.
Features:
Each pipe is cleaned to have a maximum carbon level 0.20mg/dm2
Each pipe is individually end capped and packed in sealed polythene bags as bundles to maintain cleanliness.
Chemical composition CU.DHP to ISO 1190-1/CW024A to EN 1412.
BSI Kitemarked
Batch numbered for traceability.
All copper tube from sizes 12mm through to 108mm are engraved/permanently ink marked with the following information: EN 13348, nominal dimensions, manufacturer details, part no., CE Mark, Medical Device
Directive to 93/42/EEC, time and date of production.
25 year guarantee.
Copper Fittings
Copper fittings are manufactured in UK under BS EN 13485 Medical Devices: Quality Management Systems. All fittings are degreased for medical gas use, engraved with EN 1254, size and manufacturer details and individually packed.
Cleanliness is guaranteed below 0.01 mg/cm2 of hydrocarbons on the degreased surface of the fitting.
Features:
EN 1254: Specification for Capillary Copper Fittings
BS 684: Specification for Copper Fittings used with Copper Tubes
ASTM B280: Cleanliness Testing
HTM 02-01: NHS Health Technical Memorandum
C11: NHS Model Engineering Specifcation-Medical Gases
EN 7396 – 1: Medical Gas Pipelines for Compressed Medical Gases and Vacuum
BS EN 740: Active Anaesthetic Gas Scavenging Pipeline System
CE marked as a Class IIa Medical Device 93/42/EEC with notifed body British Standard Institute
Line Valves
Lockable line valves are manufactured under BS EN 13485 Medical Devices: Quality Management Systems and CE marked with notified body British Standards Institute under the Medical Device Directive 93/42/EEC.
They comprise of a 2-piece full bore male threaded nickel plated brass ball valve c/w chrome plated brass ball, blow- out proof stem, stem O-ring, Teflon ball seals and flat face copper stub pipe assemblies. The copper stub pipe assemblies are manufactured from medical gas copper tube compliant to BS EN 13348 and are factory soldered to brass flat face seal housings chemically cleaned and degreased.
The copper pipe stubs enable easy fluxless brazing to the medical gas pipeline system.
The handle is lockable in open or closed position to prevent unauthorised operation of the valve.
All line valves are factory tested for tightness and leakage, batch numbered and individually end capped and bagged in clear polythene bag to maintain cleanliness.

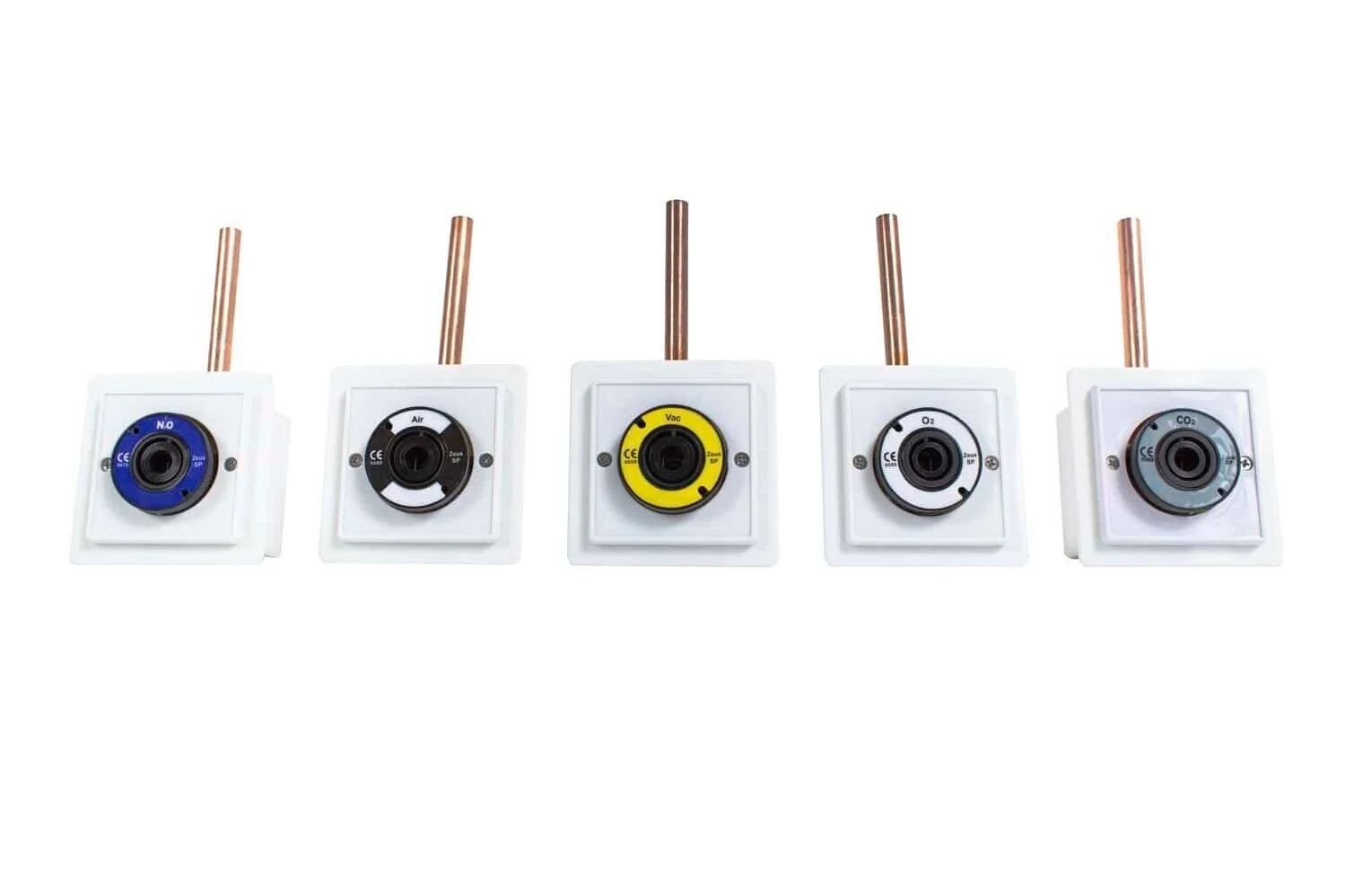

Medical Gas Outlets
Tektraco can supply a range of medical gas outlets in accordance to BS 5682, DIN 13260-2, AFNOR NFS90-116, AA875 24 30, and UNI 9507 standards.
Medical gas outlets can be supplied suitable for wall mounting, flush wall mounting and bedhead mounting. The second fix of the outlets can be supplied in plastic, all metal construction and also metal ring.
Designed to meet:
HTM 02-01 Health Technical Memorandum Medical Gas Pipeline Systems
C11 NHS: Model Engineering Specification- Medical Gases
EN 7396-1 Pipelines for Compressed Medical Gases and Vacuum
Medical Device Directive 93/42/EEC.
(NIST) Low Pressure Connectors for Medical Gases.
BS EN 18082 Non-interchangeable Screw Threaded
Area Valve Service Units
Compact AVSU
Multi valve compact area control boxes are installed at the entrance of wards to control the supply and also monitor medical gases to the wards. Designed to comply with EN ISO 7396-1 including pressure monitoring, Low and high pressure alarm, and emergency supply inlet.
Apart from analogue displays we can also offer optional digital displays, consumption measurement, temperature measurement, door tamper alarm and History Observation.
HTM 02 Area Valve Service Unit (AVSU) Module
The HTM 02 AVSU module can accommodate up to six gases together with an area alarm and is usually installed at the entrance to a ward to provide zoning to the said ward.
Modules can be supplied as flush or surface mounting.
Fully compliant to HTM 02-01, BS EN 18082 and C11
Include Upstream and Downstream NIST connectors.
Gas types available Oxygen, Nitrous Oxide, Entonox, Medical Air, Surgical Air, Vacuum, Carbon Dioxide, Nitrogen, Helium Mix, Lab Gas, other gas types available on request.
Factory Tested and certified and Pre piped for easy installation.
Front covers can be supplied as epoxy coated steel or Polymer laminated anti microbial cover.
Analogue or Digital Area alarm can be factory fitted in the module.
Option flow measurement for each individual gas type to provide flow data 24 hours each day.
Alarm Units
Medical Gas Systems require two types of alarms – Area Alarms and Central Alarms.
Area Alarms are used to monitor pipeline pressure within a ward.
Pipeline pressure transducers in the pipeline are connected to the Area Alarms and monitor the line pressure within a ward. Should the pressure go below or go higher than the acceptable level, a Low or High pressure alarm is initiated in order to alert the ward staff. Also, a fault in the wiring between the transducer/pressure switch to the alarm will result in a system fault alarm.
Central Alarms monitor the plant equipment such as air compressors, vacuum pumps and automatic change over panels and give an alarm when there is a fault in these plants or when a duty bank of cylinders is exhausted. These alarms are normally installed at 24 hour manned locations.
Features:
Alarm indication up to 6 Gas Services.
Ultra low 12V Digital Touchscreen Alarm.
EN 7396-1 HTM 02-01 & SHTM02-01 fully compliant.
Battery back up in case of power failure.
Anti microbial fascia laminate.
Outputs for digital connection to Hospital BMS.
2 Year Warranty.
